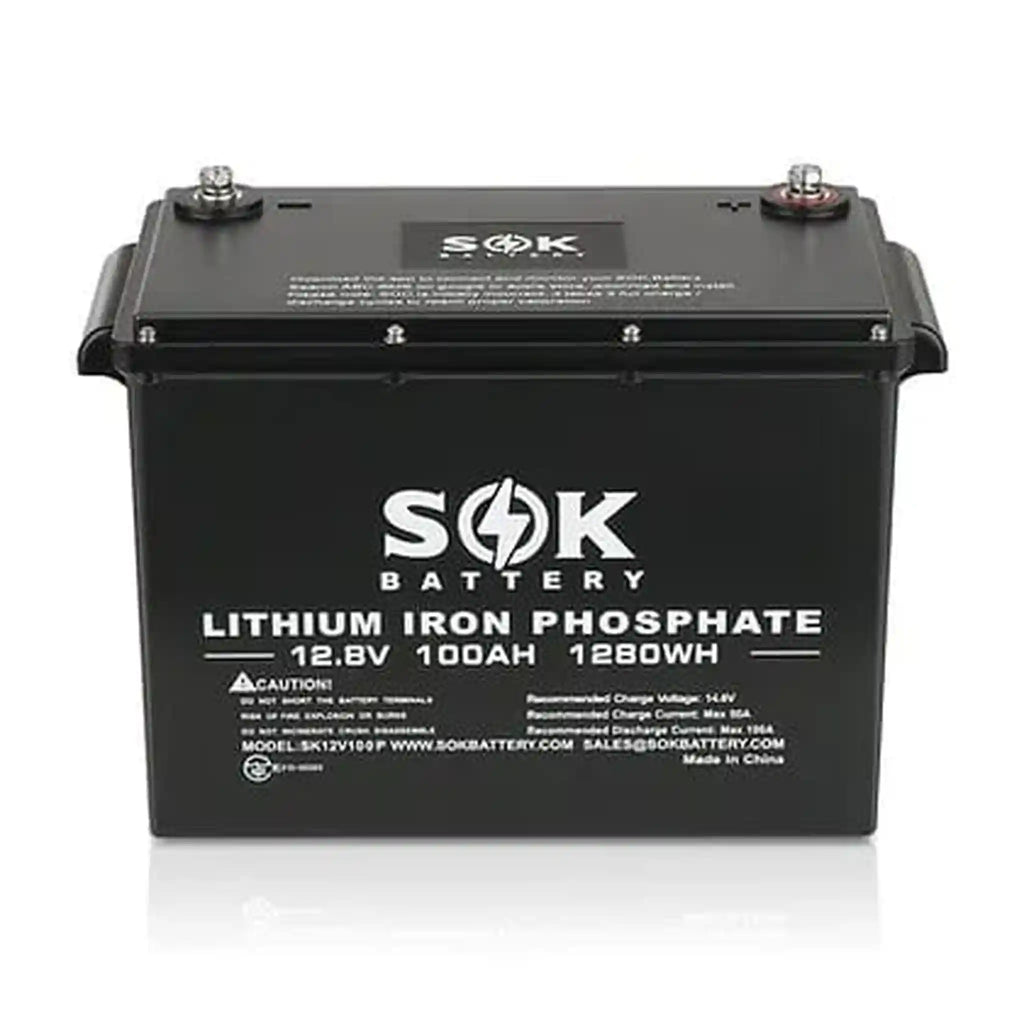

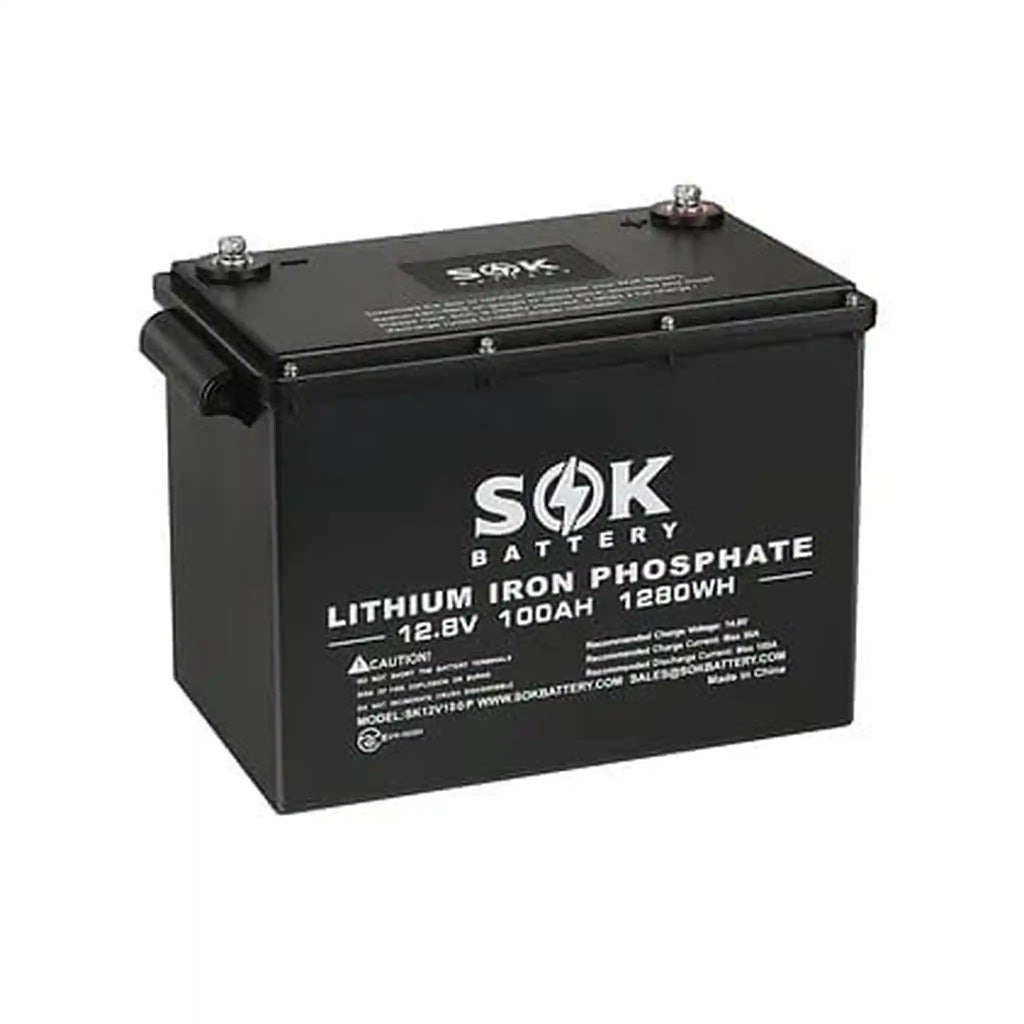

The SOK Lithium Iron Phosphate 12V 100Ah Battery, Marine Grade is engineered for durability and performance in demanding environments. Equipped with the latest V8 version Bluetooth BMS and advanced cell balancing, it's ideal for marine applications and off-grid power systems.

Supports series and parallel connections for flexible system configurations.

Key Features

• 7-Year Warranty
  Offers a long service life of 4,000 to 8,000 cycles, with zero maintenance required.

• Durable, Marine-Grade Construction
  Designed for harsh marine conditions and sealed for added protection.

• Modular Expandability

  • Series connection: 24V, 36V, or 48V battery bank

  • Parallel connection: Increase system capacity

• Replaceable Components
  Features a detachable cover allowing easy replacement of the BMS or individual cells.

• Intelligent BMS

  • Manages charging and discharging operations

  • Low and high temperature cut-off for safe operation

  • Overcharge, over-discharge, over-current, and short circuit protection

  • Automatic cell balancing for consistent performance

Important Note on Series Connections

If connecting batteries in series, ensure all units are at the same state-of-charge (SOC) before setup to maintain system balance and safety.

Specification

Charge information:

Recommended Charge Current    20 A

Maximum Charge Current    70 A

Recommended Charge Voltage    14.6 V

Discharge information

Maximum Continuous Discharge Current    170 A

Peak Discharge Current    200 A (3 s)

Recommended Low Voltage Disconnect    10.4V

Size Information:

Terminal Type: M8, 5/16 lugs

Weight: 27 lbs.

Temperature Information:

Discharge Temperature    -4 to 140 ºF

Charge Temperature    -4 to 113 ºF

Storage Temperature    23 to 95 ºF

Certifications Information:

UL1973&IEC62619 for Battery cells

Manuals and Downloads

Specification

User Manual
