RUiXU | Lithi2-16 16kWh Lithium Battery | 51.2V 314Ah | UL1973/9540A/9540 Certified | CEC & SGIP

Note: Pre-order ETA – 17th of November

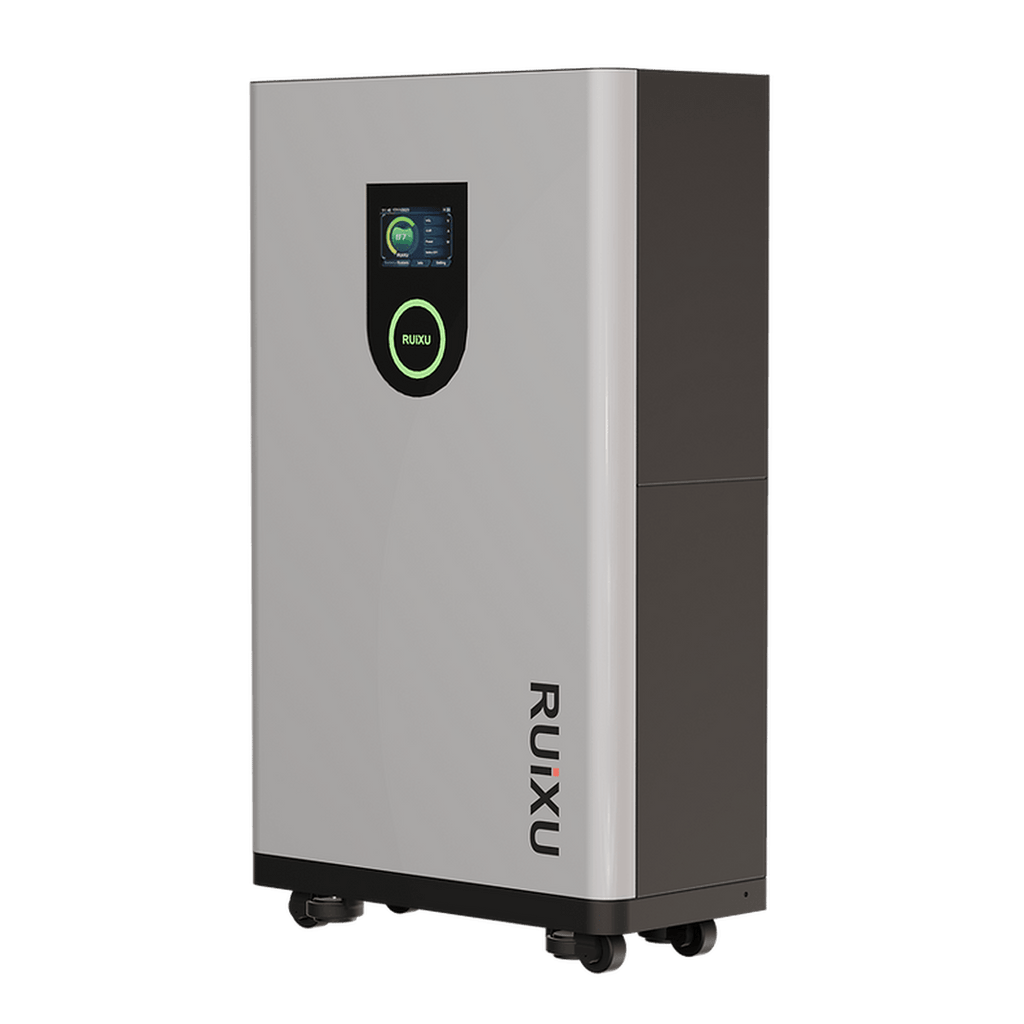

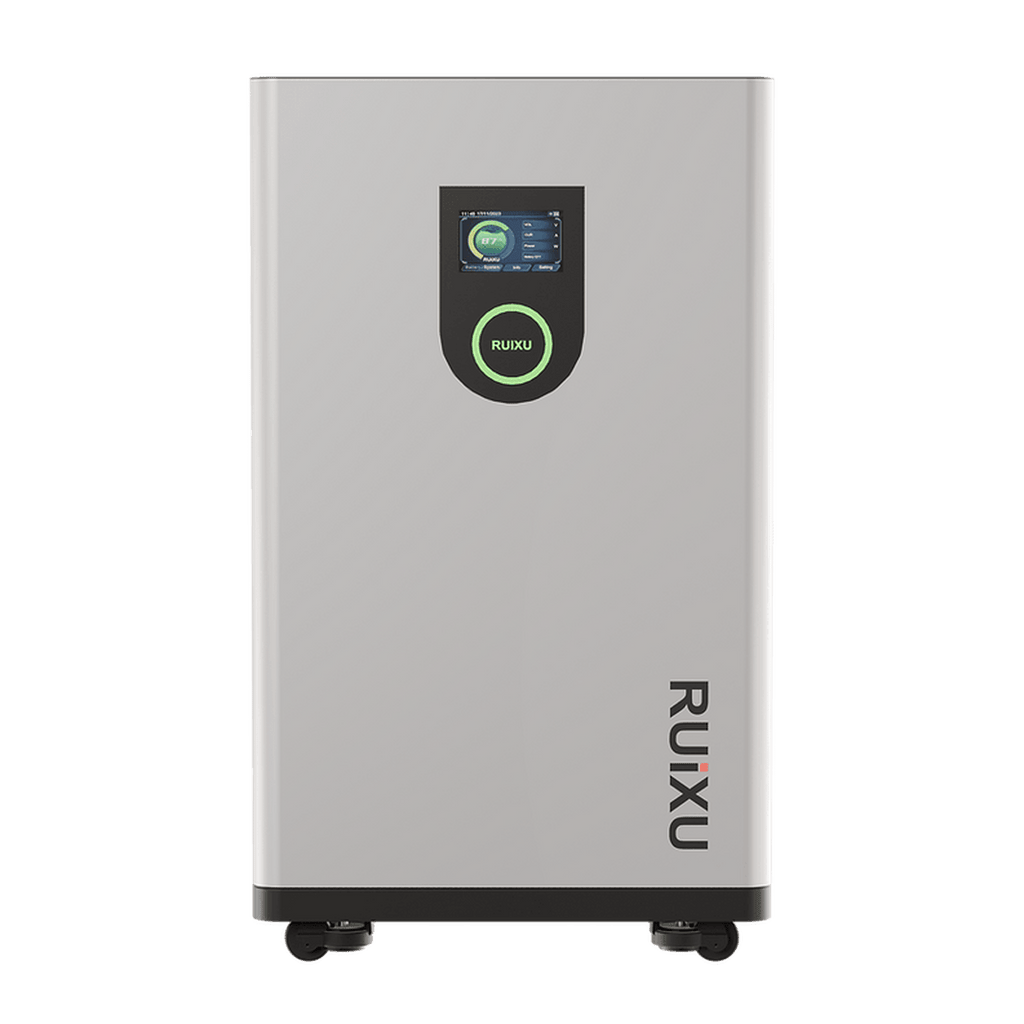

The RUiXU Lithi2-16 is a premium-grade LiFePO4 (lithium iron phosphate) battery designed for residential and commercial energy storage. Delivering 51.2V at 314Ah, it offers a substantial 16.07 kWh capacity, backed by a robust cycle life of over 9,500 cycles at 80% DOD. This intelligent, wall-mountable system is engineered for long-term performance, safety, and convenience, making it ideal for solar storage, backup power, and off-grid applications.

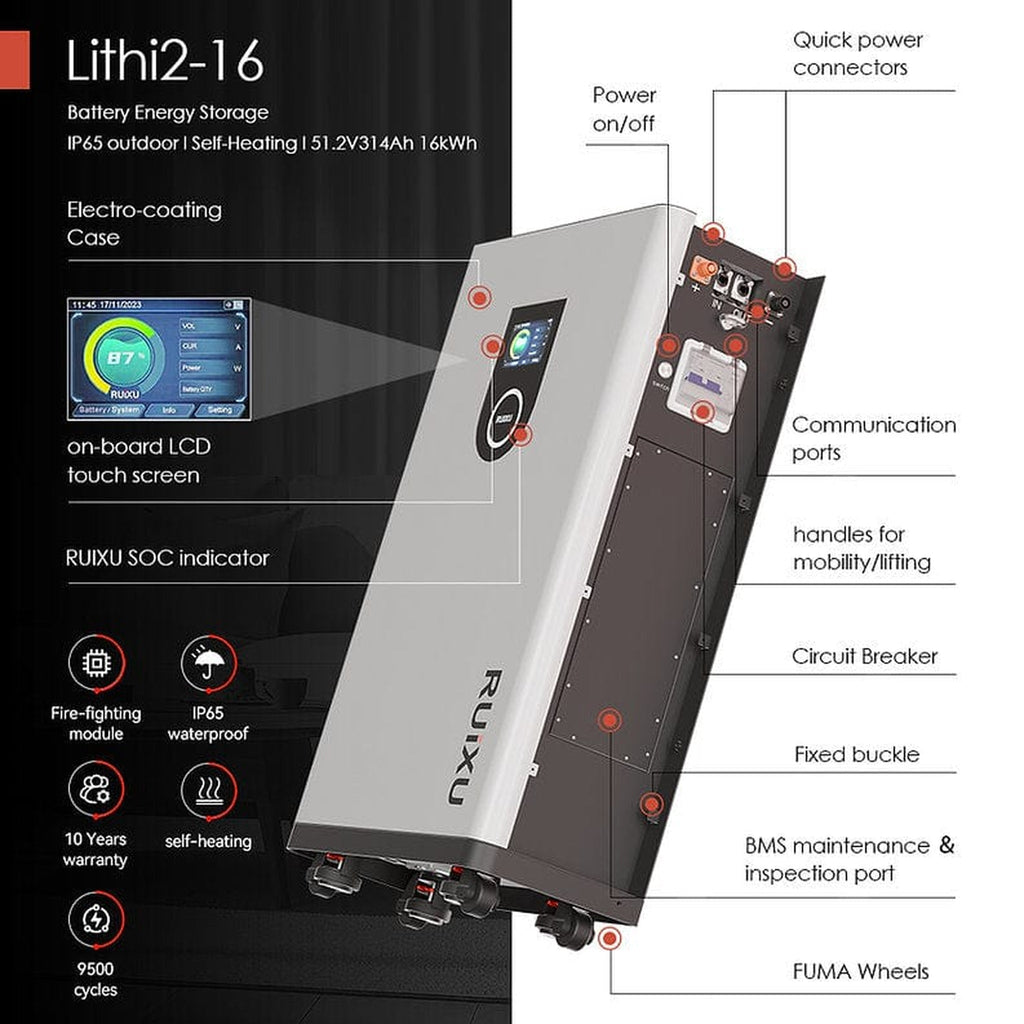

Key Features

• Massive 16kWh Capacity
  Ideal for large-scale residential and commercial energy storage applications.

• 5” LCD Touchscreen Interface
  Real-time monitoring and intuitive settings via a capacitive onboard display.

• Advanced Fire Protection
  Integrated Perfluorohexane module enhances internal safety and protects against thermal events.

• Quick-Connect Terminals (250A Rated)
  Simplifies setup with secure, tool-less plugs that resist heat and loosening.

• Heavy-Duty Mobility & Mounting
  Built-in concealed wheels and anti-tip wall mount for easy transport and safe installation.

• Accessible Maintenance Port
  Inspection window for fast access to BMS and fuse systems.

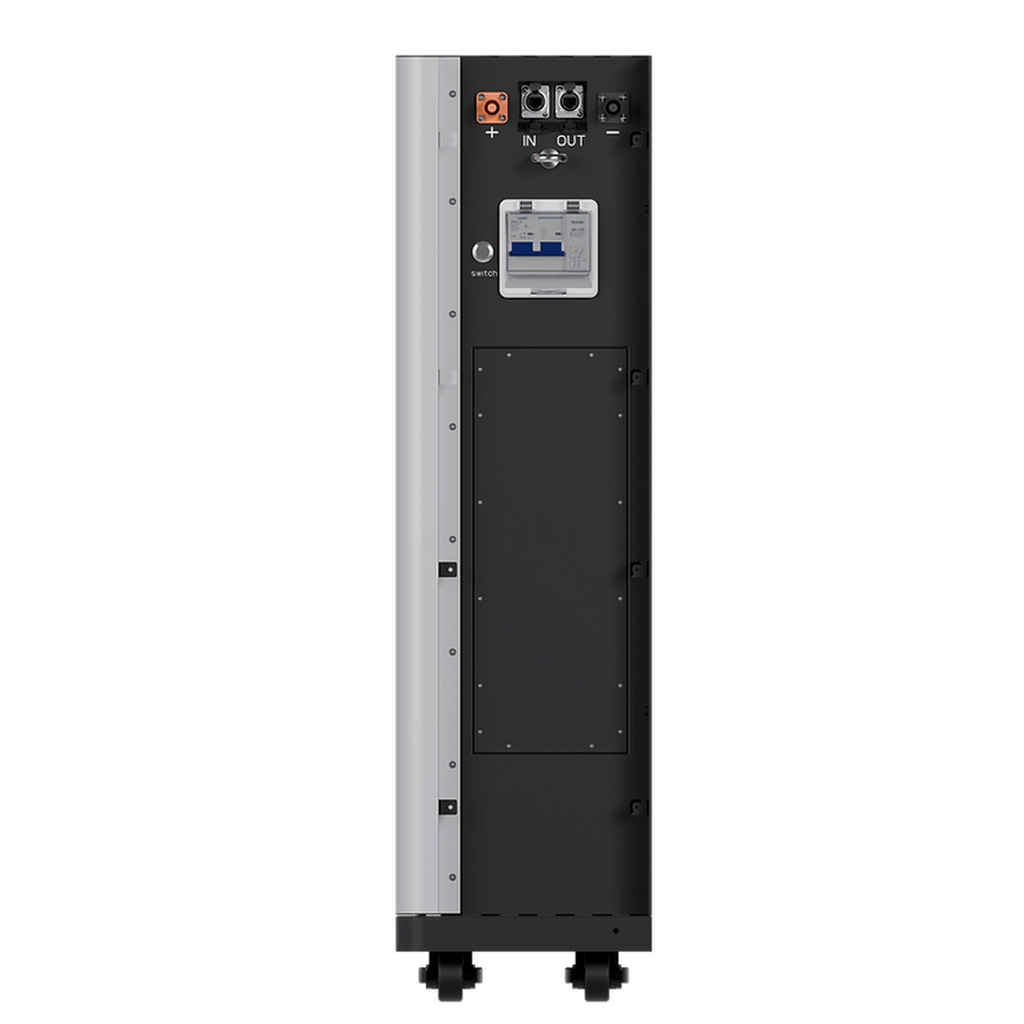

• Dual Terminal Protection
  Includes a fuse on the negative and micro circuit breaker on the positive, ensuring all-pole electrical safety.

• Smart Cell Balancing System
  Double-level equilibrium control optimizes battery life and performance.

• Self-Heating for Cold Environments
  Allows reliable charging and discharging in low-temperature conditions.

• Electro-Coated Steel Enclosure
  Rugged, corrosion-resistant case suitable for indoor and outdoor environments.

Communication & Inverter Compatibility

• CANbus:
  Seamlessly integrates with Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider.

• RS485:
  Compatible with MPP, Voltronic, RCT, Alpha, and Outback.

Certifications:

• UL1973 Certified

• UL9540 Compliant

• 10-Year Warranty

What's Included

• (1) RUiXU Lithi2-16 Battery

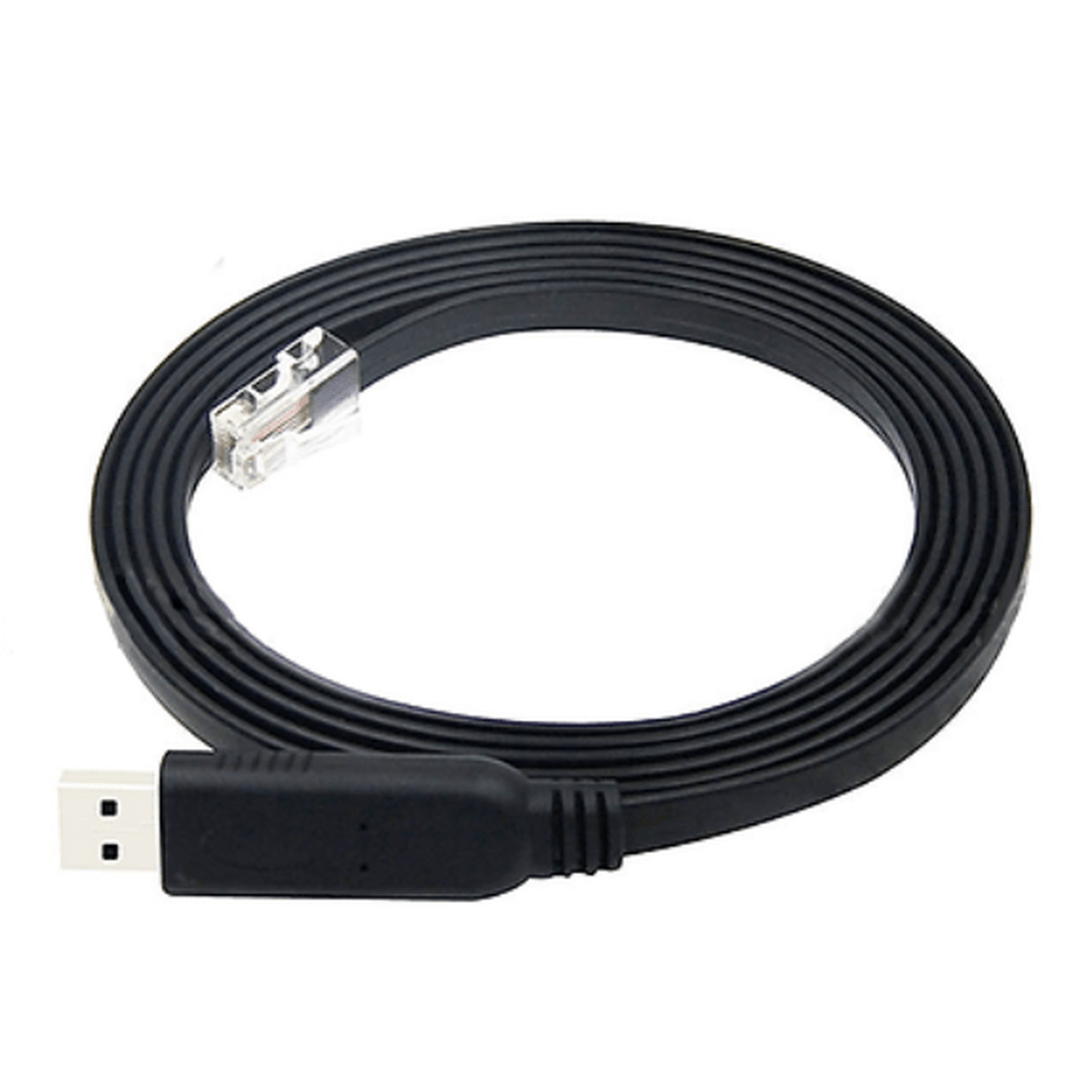

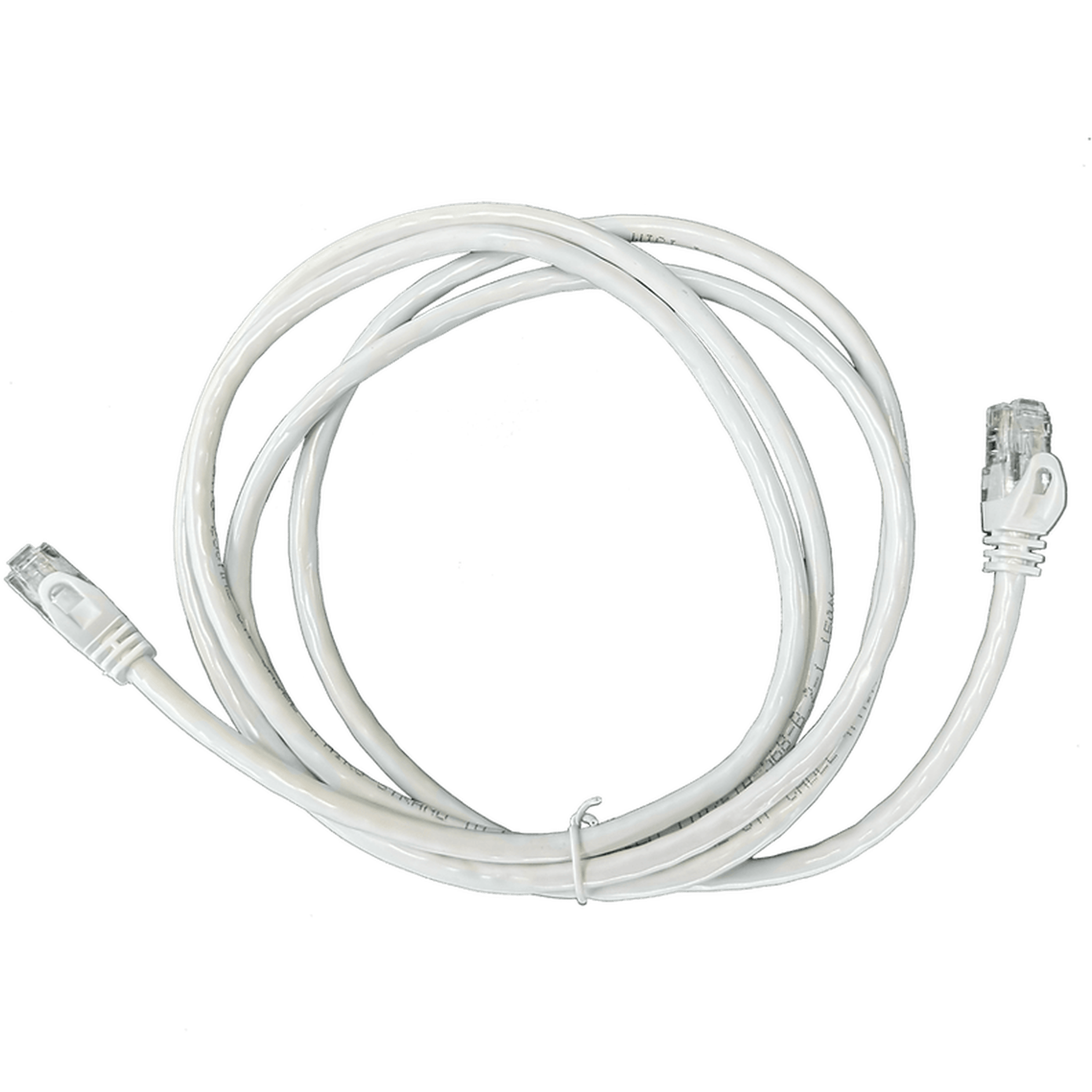

• (1) RJ45/CAT5e Patch Cable
• (1) Ground Cable
• (1) Set of Parallel 1/0 AWG OP140 Cables

Specifications

• Nominal Voltage: 51.2V
• Nominal Capacity (0.2C): 314 Ah
• Minimum Capacity (0.2C): 314 Ah
• Nominal Energy: 16.07 kWh

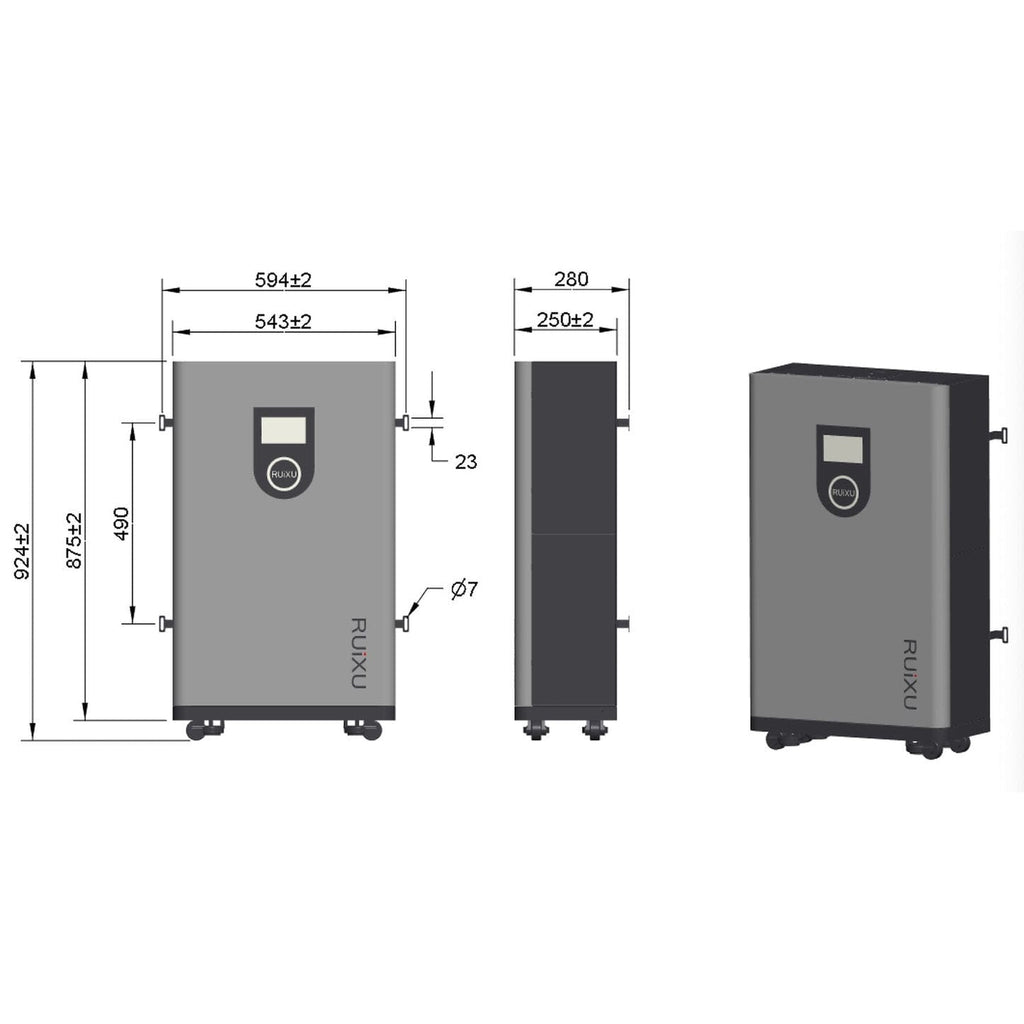

• Dimensions (W x D x H): 924 mm (with wheels) x 543 mm x 250 mm (36.3 in x 21.3 in x 10 in)
• Weight: ~145 kg (320 lb)
• Cycle Life (80% DOD): ≥ 9500 cycles

Manual and Downloads

• Spec Sheet
