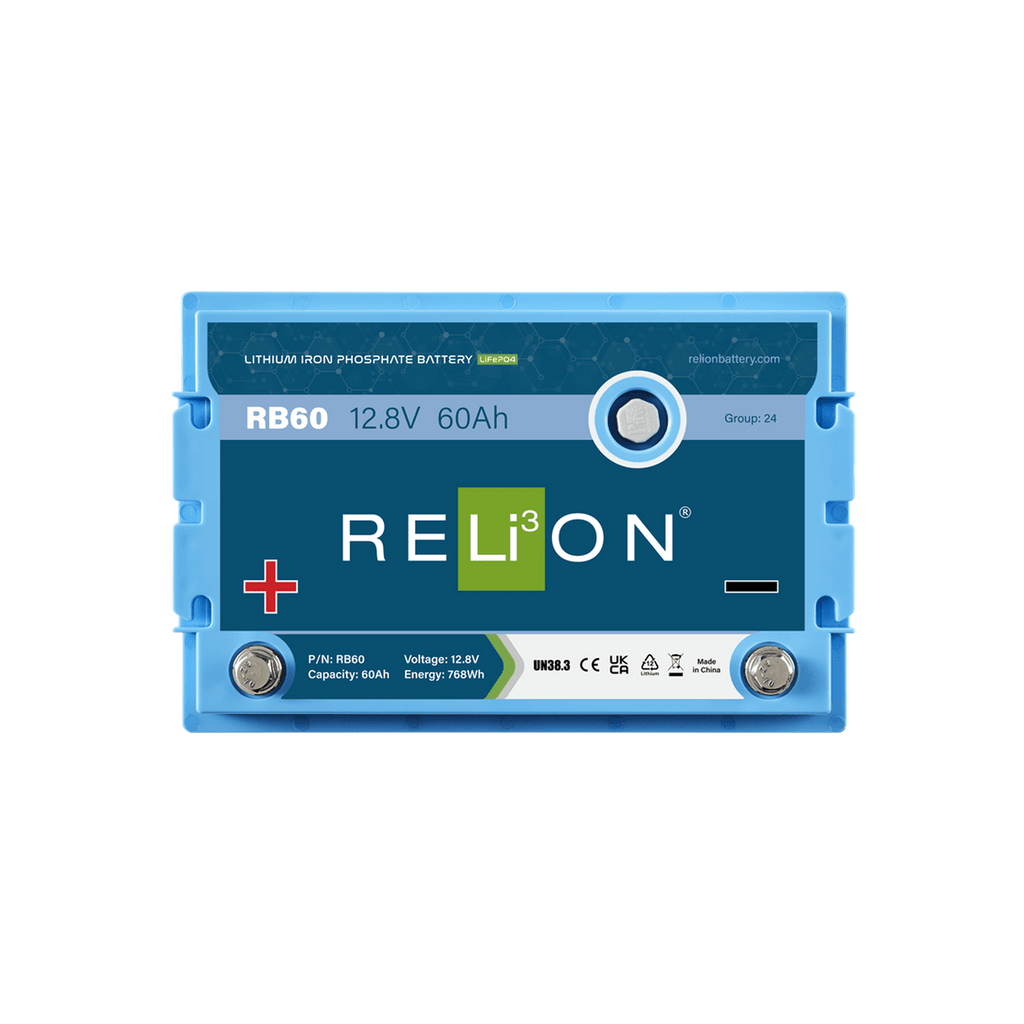

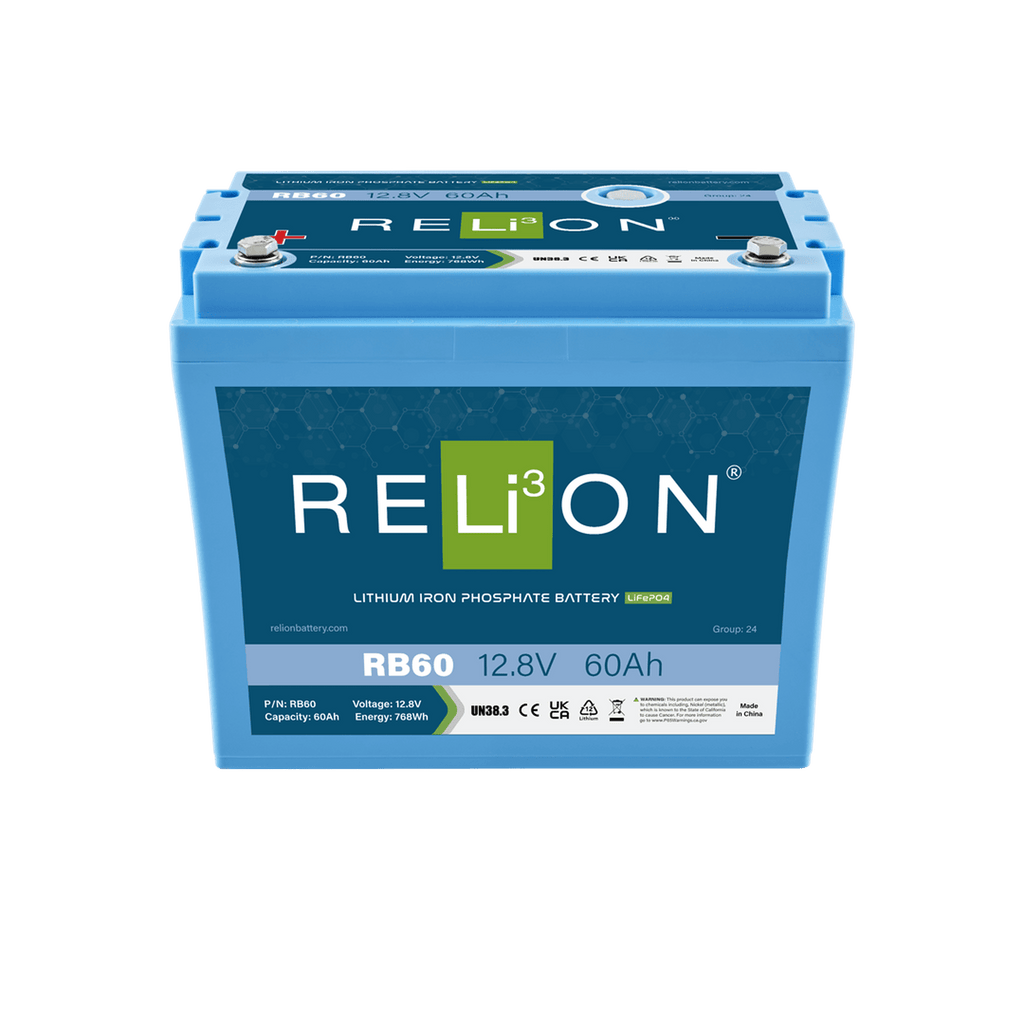

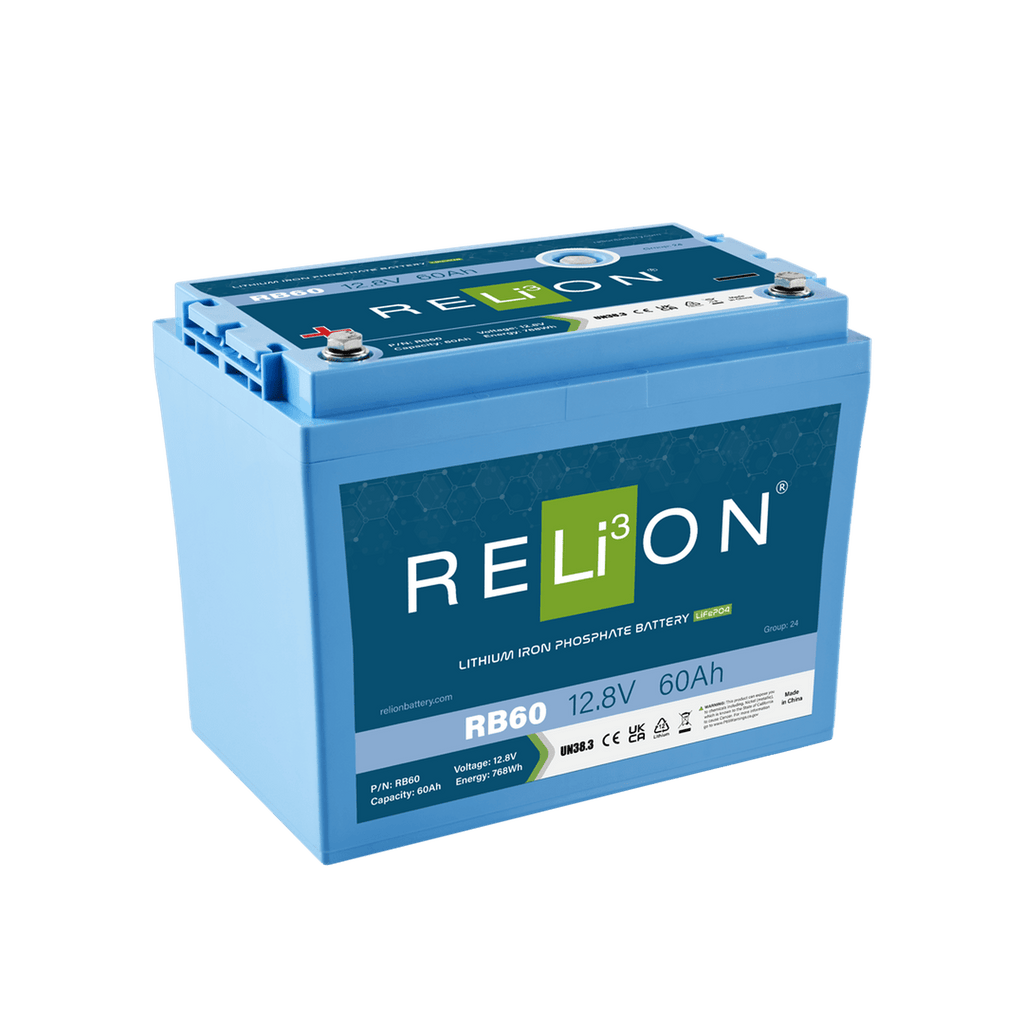

RB60 12V 60Ah Deep Cycle Lithium Battery – Group 24

The RB60 is a 12V 60Ah deep cycle lithium battery built with advanced LiFePO4 technology, offering exceptional cycle life, consistent power output, and low maintenance. Its lightweight, compact Group 24 design makes it ideal for marine, RV, solar, and off-grid power applications, ensuring reliable energy in demanding environments.

KEY FEATURES

• Built with safe Lithium Iron Phosphate (LiFePO4) chemistry
• Compact Group 24 size for easy installation
• Provides consistent voltage throughout discharge cycle
• Lightweight and maintenance-free design
• Equipped with built-in protection circuitry
• High cycle life for long-term reliability
• Vibration and shock resistant for tough conditions

Specifications

Electrical

• Nominal voltage: 12.8V
• Capacity: 60Ah
• Energy: 768Wh
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Cycle life: 3500+ cycles at 80% depth of discharge
• Self-discharge rate: <3% per month

Discharge

• Max continuous discharge: 60A
• Peak discharge: 100A (7.5 ± 2.5 seconds)

Charge

• Recommended charge voltage: 14.2 – 14.6V
• Max charge current: 60A

Temperature

• Discharge temperature: -4°F to 140°F (-20°C to 60°C)
• Charge temperature: 32°F to 113°F (0°C to 45°C)

Mechanical

• Weight: 16.5 lbs (7.5 kg)
• Dimensions: Group 24 standard size (L x W x H)
• Terminal type: M8 bolt
• Waterproof rating: IP67

Certifications

• CE, UKCA
• UN38.3 (battery)
• UL1642 (cells)
• IEC62133 (cells)

Manuals and Downloads

• Datasheet
• Warranty
