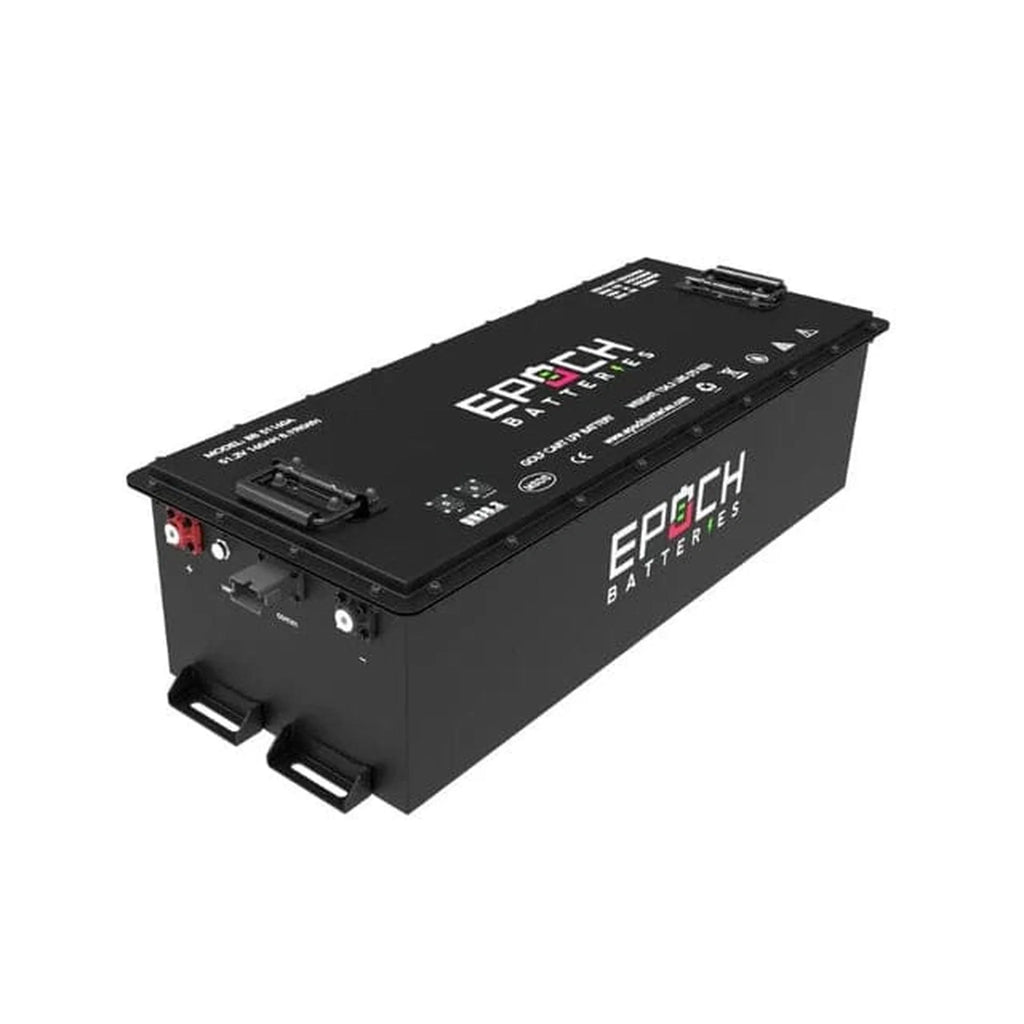

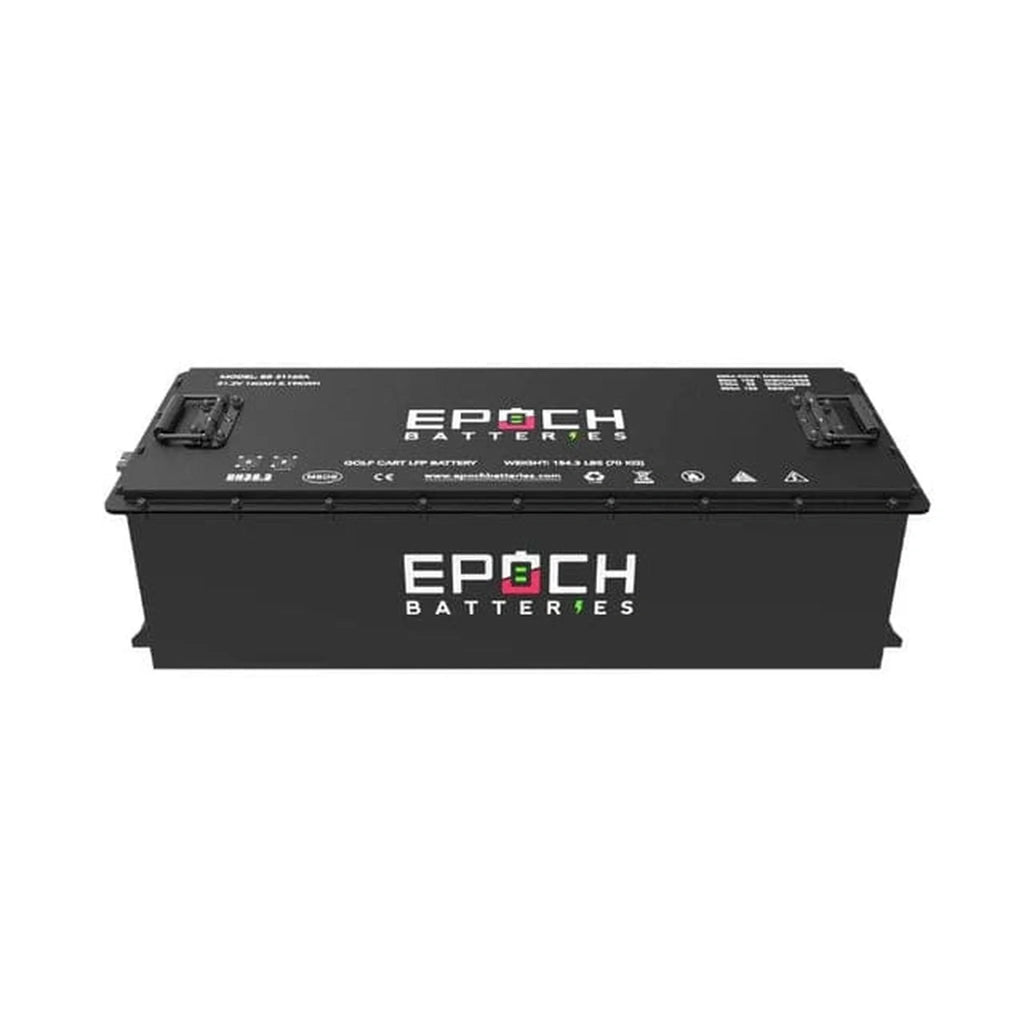

48V 160Ah Lithium (LiFePO4) Golf Cart Battery - Complete Kit

Upgrade Your Ride with Long-Lasting Power and Advanced Tech — The 48V 160Ah Lithium (LiFePO4) Golf Cart Battery - Complete Kit is the ultimate drop-in solution for golf carts, offering unmatched reliability, cutting-edge performance, and modern features designed for smooth rides and long-lasting energy.

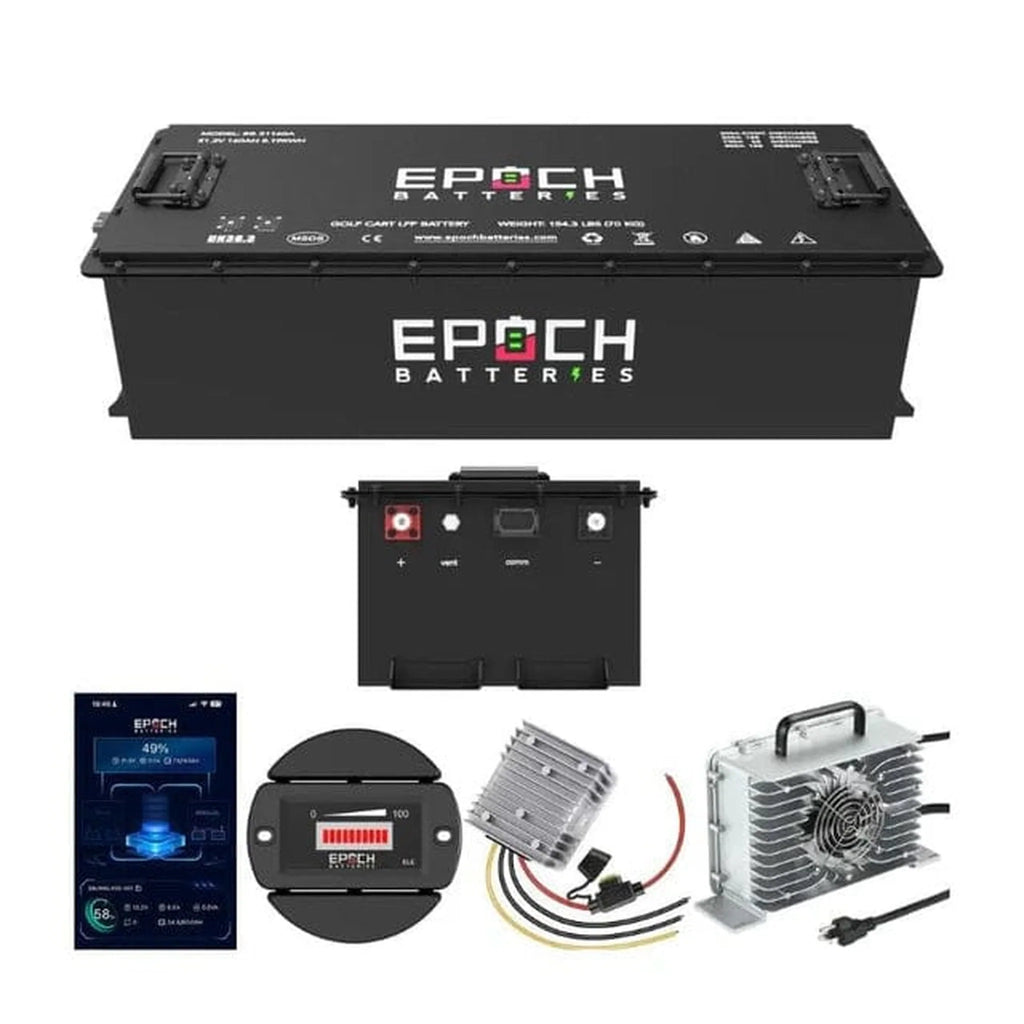

Complete Lithium Conversion in One Kit

This all-in-one battery solution includes everything you need to replace outdated lead-acid systems with powerful lithium performance:

• 48V 160Ah LiFePO4 Battery with advanced Battery Management System (BMS)

• 48V 15A Lithium Charger for fast, efficient charging

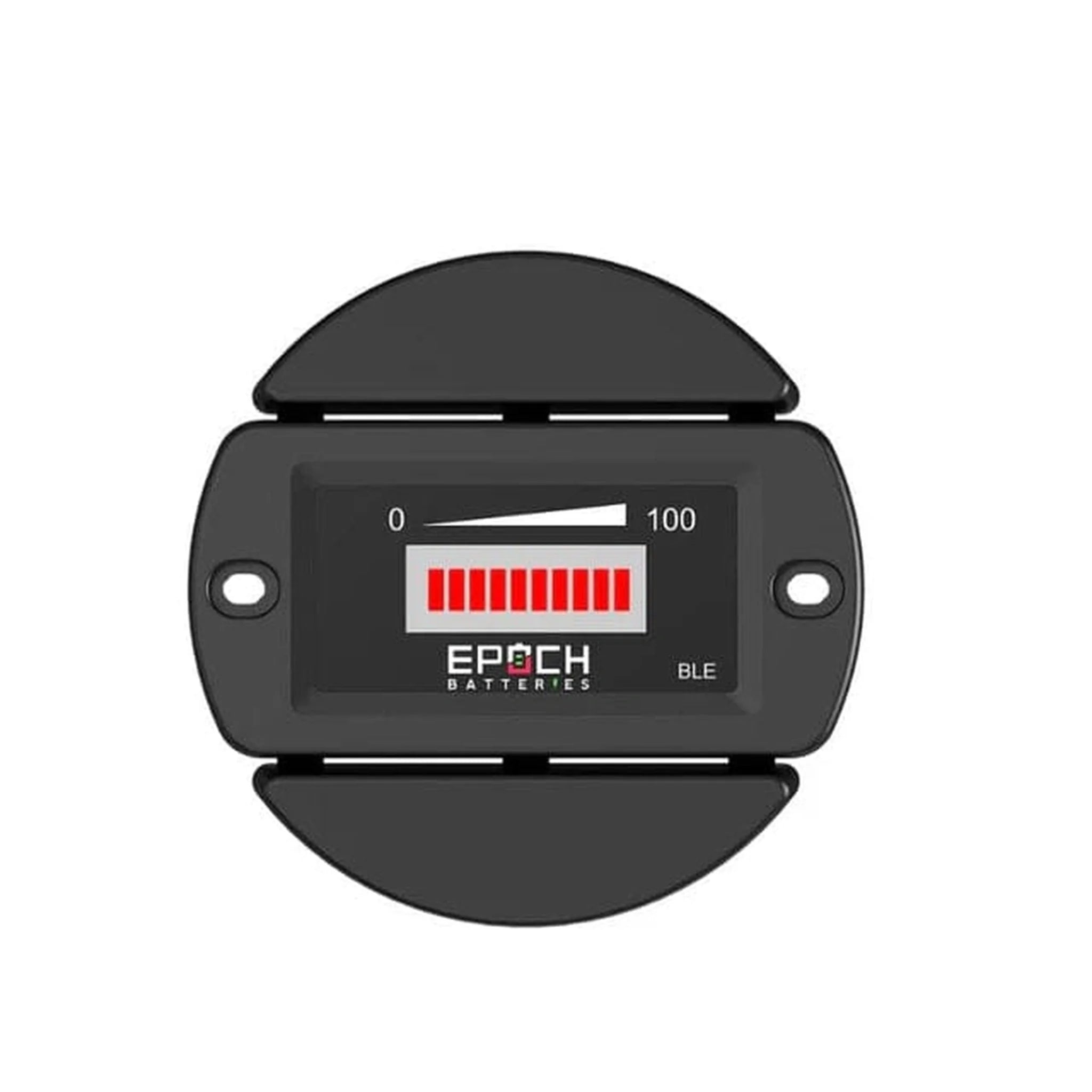

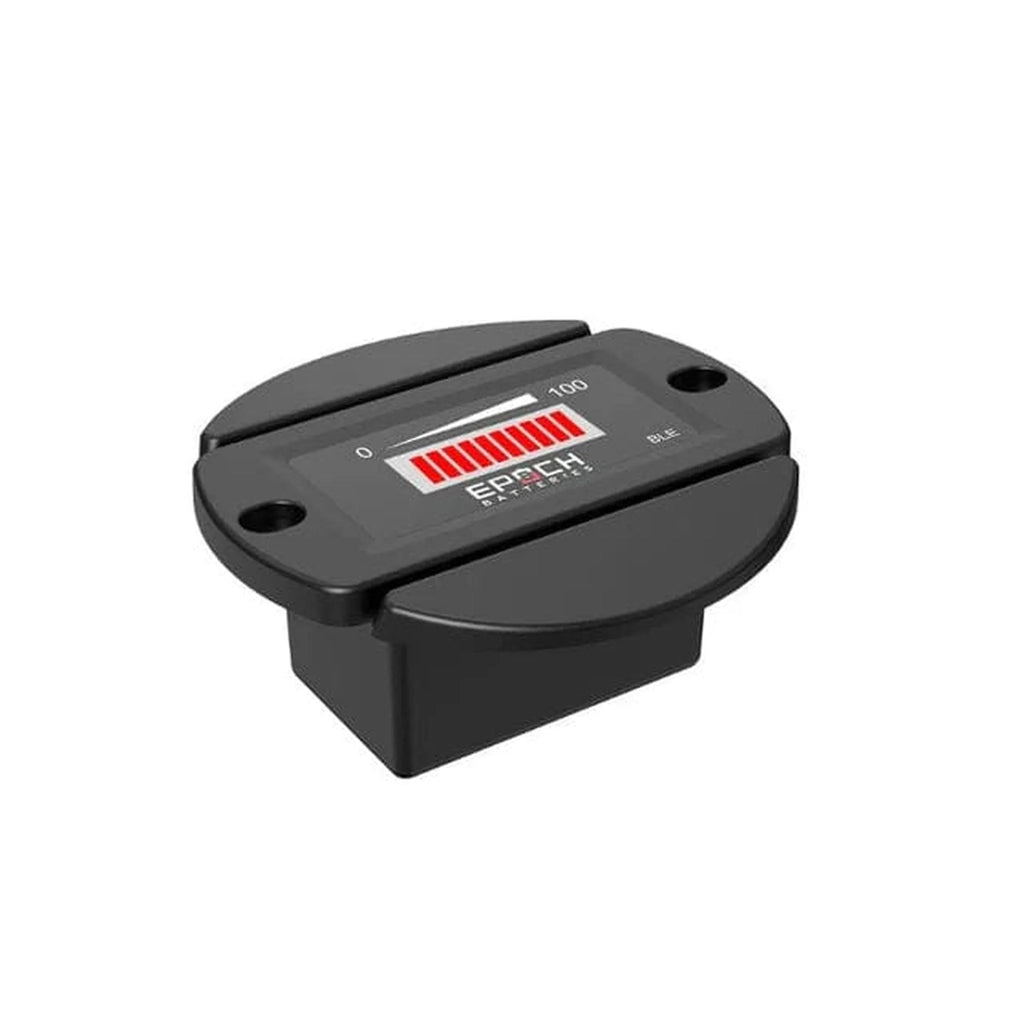

• Battery Gauge for real-time monitoring

• 12V Converter for accessories and lighting

• Cart-specific mounting brackets for quick, secure installation

• Bluetooth app (compatible with iOS & Android) for system diagnostics and performance tracking

Built for Power and Longevity

• 200A max continuous discharge, 700A peak (2 seconds) for strong uphill performance

• 100A max continuous charge, 300A regen peak (15 seconds)

• 3,500+ cycle life for years of reliable use

• Internal heating system for cold-weather performance

• Advanced BMS ensures cell balancing, over-voltage protection, temperature regulation, and more

• IP67 waterproof rating protects against dust and water exposure

• Over-the-air firmware updates keep your system current and optimized

Safe, Smart, and Maintenance-Free

The 48V 160Ah Lithium (LiFePO4) Golf Cart Battery - Complete Kit delivers a superior riding experience by eliminating the hassle of maintenance while ensuring consistent high power output. Whether you're cruising the course or navigating your property, enjoy peace of mind with:

• High discharge rates for torque-heavy demands

• Internal safety mechanisms to protect against overcharging, overheating, and short circuits

• Long lifespan backed by an 11-year warranty

Specification

CONFIGURATION

• Cell Configuration: 1P16S
• Chemistry: LiFePO4

CURRENT

• Ah Capacity: 160Ah
• Max Continuous Discharge Amps: 200A
• Max Charge Current Amps: 100A Continuous, 300A @ 15s
• Max Discharge Peak Current Amps: 300A @ 15s, 700A @ 2s
• Series | Parallel: Max (2) in Parallel

VOLTAGE

• Voltage: 51.2V
• Max Charge Voltage: 58.4V
• Operating Voltage Range: 40 - 58.4V

TEMPERATURE

• Charge Temp Range: 0°C (32°F) / 55°C (131°F)
• Discharge Temp Range: -20°C (-4°F) / 60°C (140°F
• Storage Temp: 0°C (32°F) / 35°C (95°F) (Max 12 Months)

Manuals & Downloads

Specification Sheet
