Rich Solar | ALPHA 4 | 24V 100Ah LiFePO4 Battery Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology

ALPHA 4 | 24V 100Ah LiFePO4 Battery Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology

The ALPHA 4 24V 100Ah LiFePO4 Battery is engineered for serious off-grid applications, providing reliable, long-lasting lithium power with 5,000 deep charge cycles. Designed for solar systems, RVs, marine setups, and backup storage, it features Bluetooth connectivity and internal heating for year-round performance—even in cold climates.

Built with advanced Battery Management System (BMS) technology, this 24V lithium battery ensures optimal efficiency, safety, and energy output.

Key Features

  • High-Efficiency 24V Power
    Ideal for off-grid solar systems, RVs, marine, and industrial energy storage solutions.

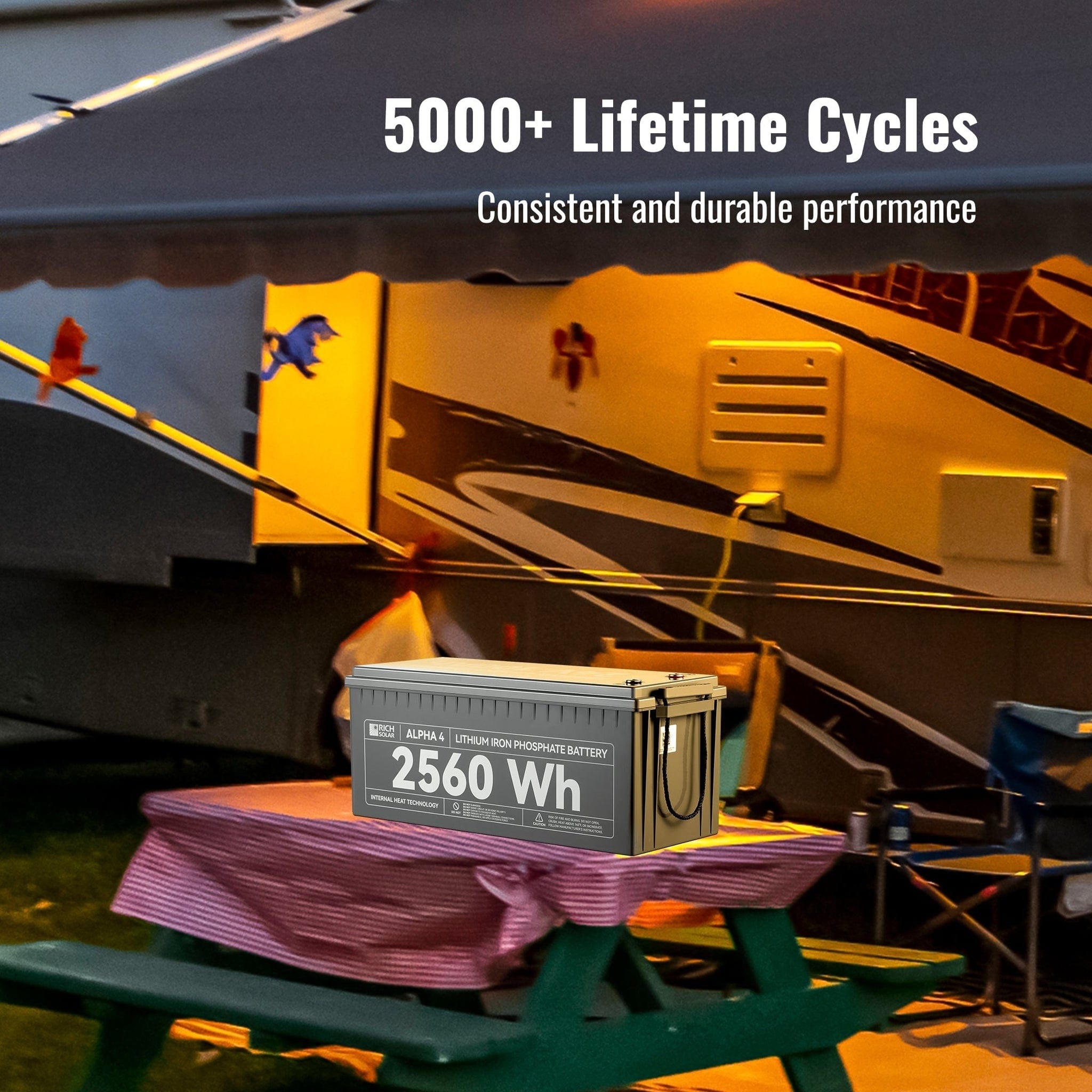

  • 5,000+ Deep Cycles
    Exceptional lifespan with consistent performance and minimal degradation.

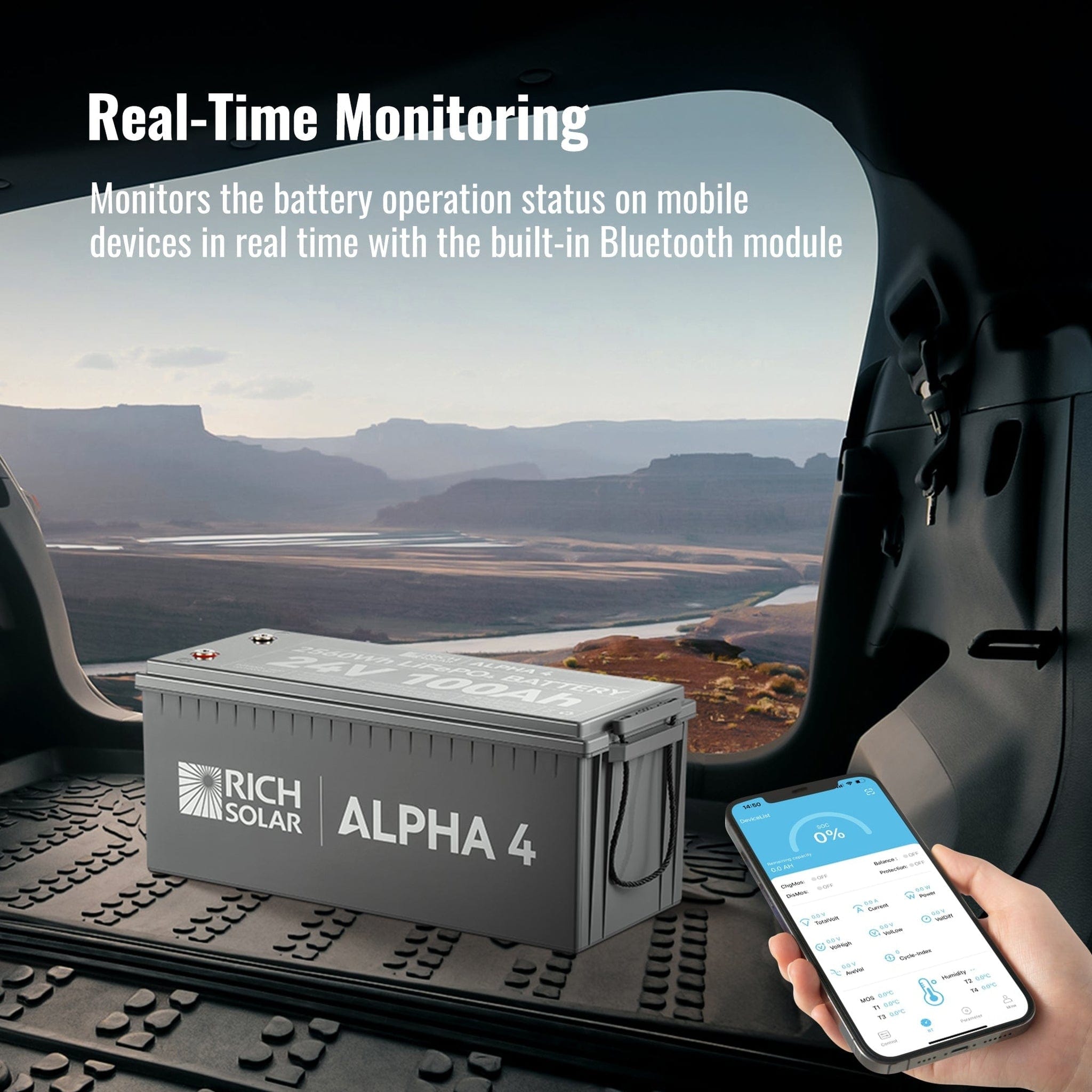

  • Bluetooth Monitoring
    Easily monitor battery health, voltage, temperature, and state of charge via your mobile device.

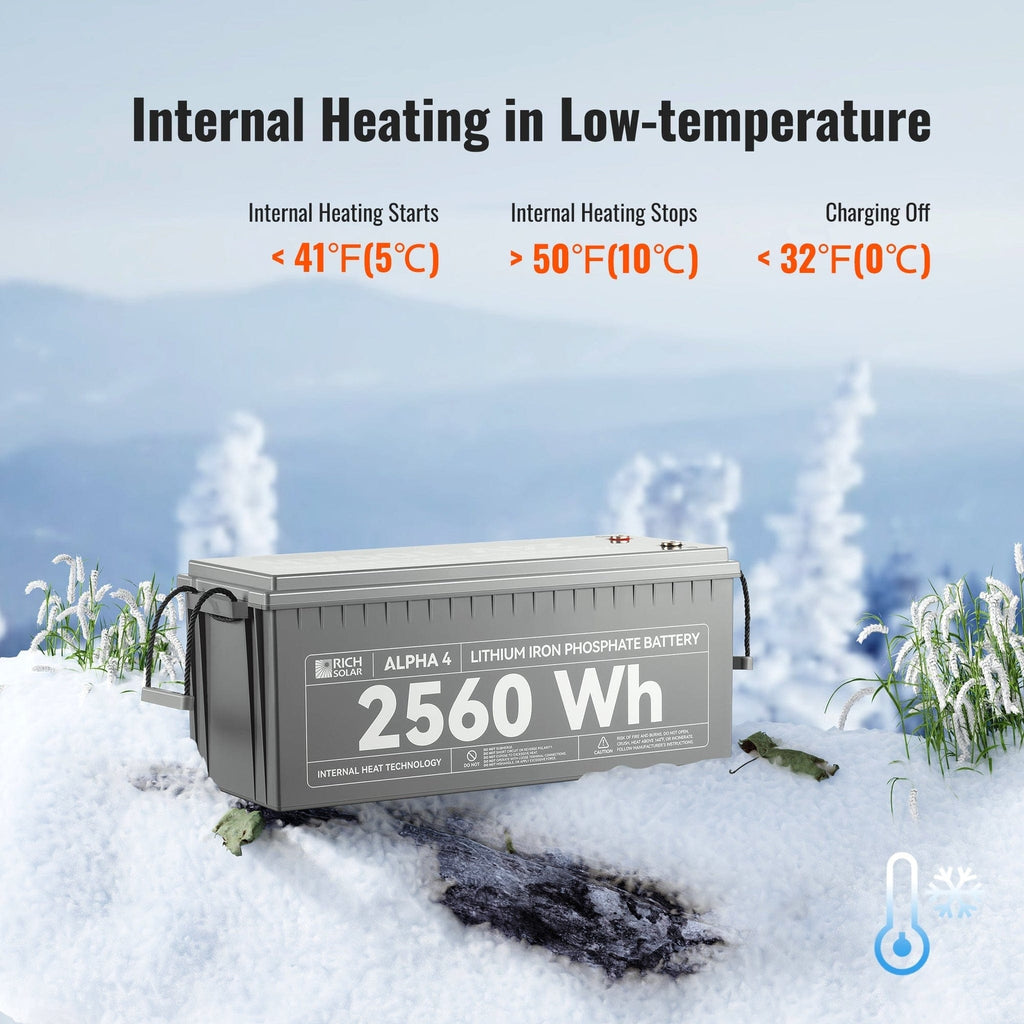

  • Built-in Internal Heating System
    Ensures safe charging in cold weather conditions, automatically warming the cells to optimal temperature.

  • Smart BMS Protection
    Guards against overcharging, over-discharging, short circuits, and extreme temperatures.

  • Expandable and Versatile
    Can be connected in series or parallel to increase voltage or capacity depending on your system needs.

  • Compact and Lightweight
    Easier to install and maintain than traditional lead-acid batteries, with no maintenance required.

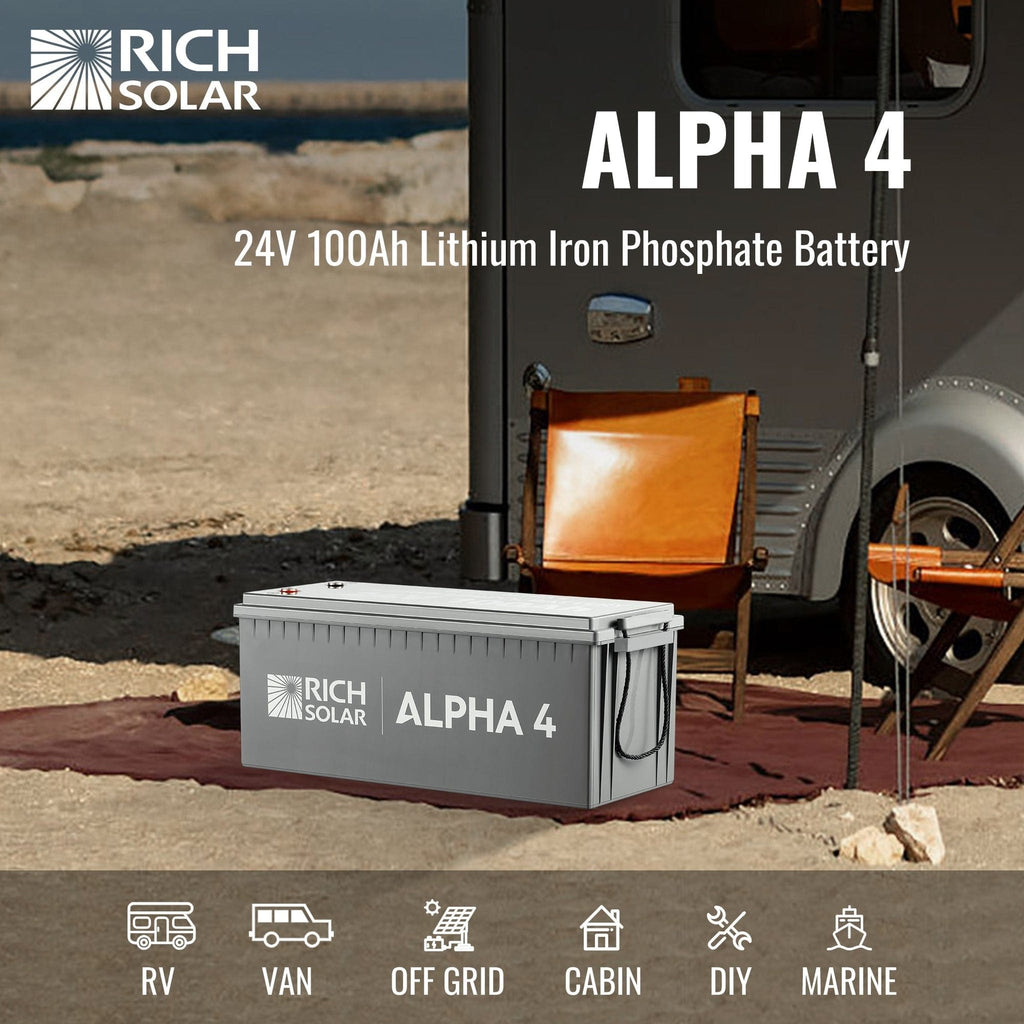

ALPHA 4 | 24V 100Ah LiFePO4 Battery Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology image 1

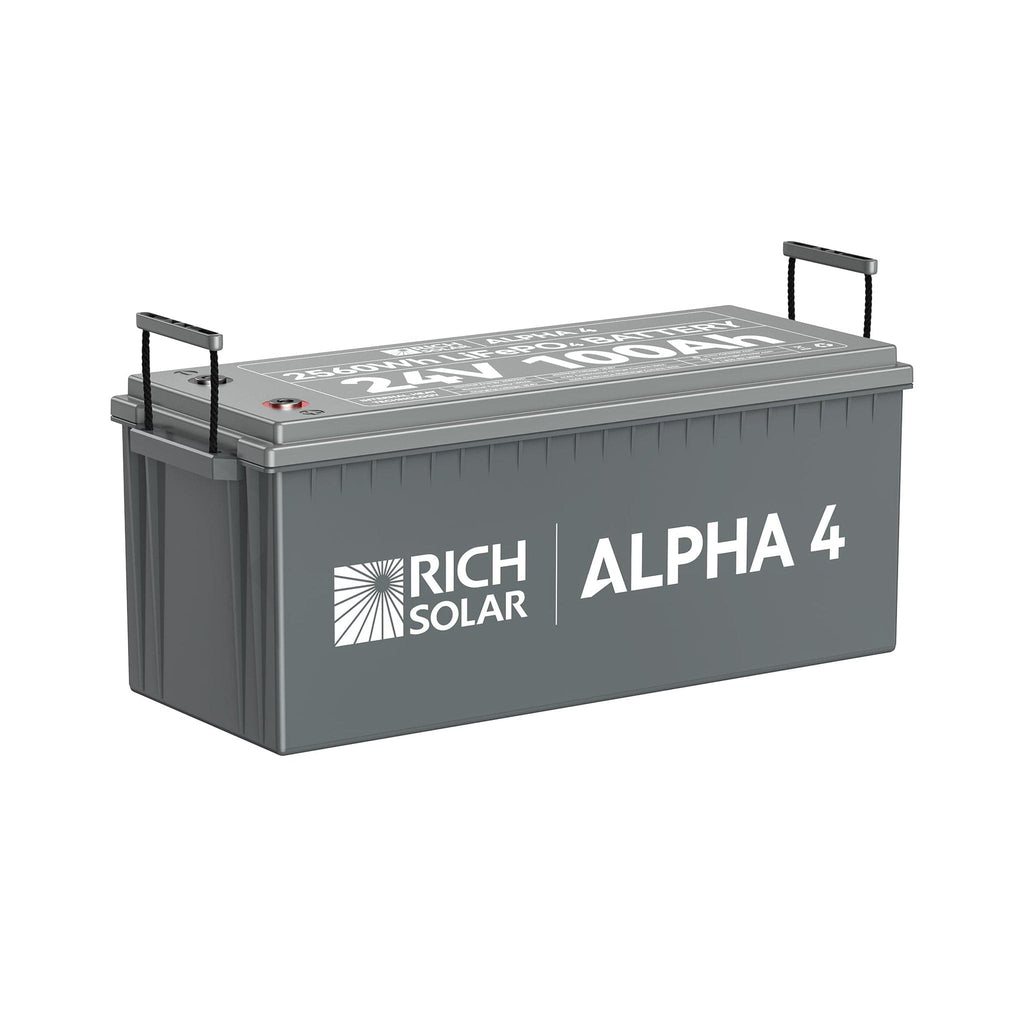

ALPHA 4 | 24V 100Ah LiFePO4 Battery Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology image 2

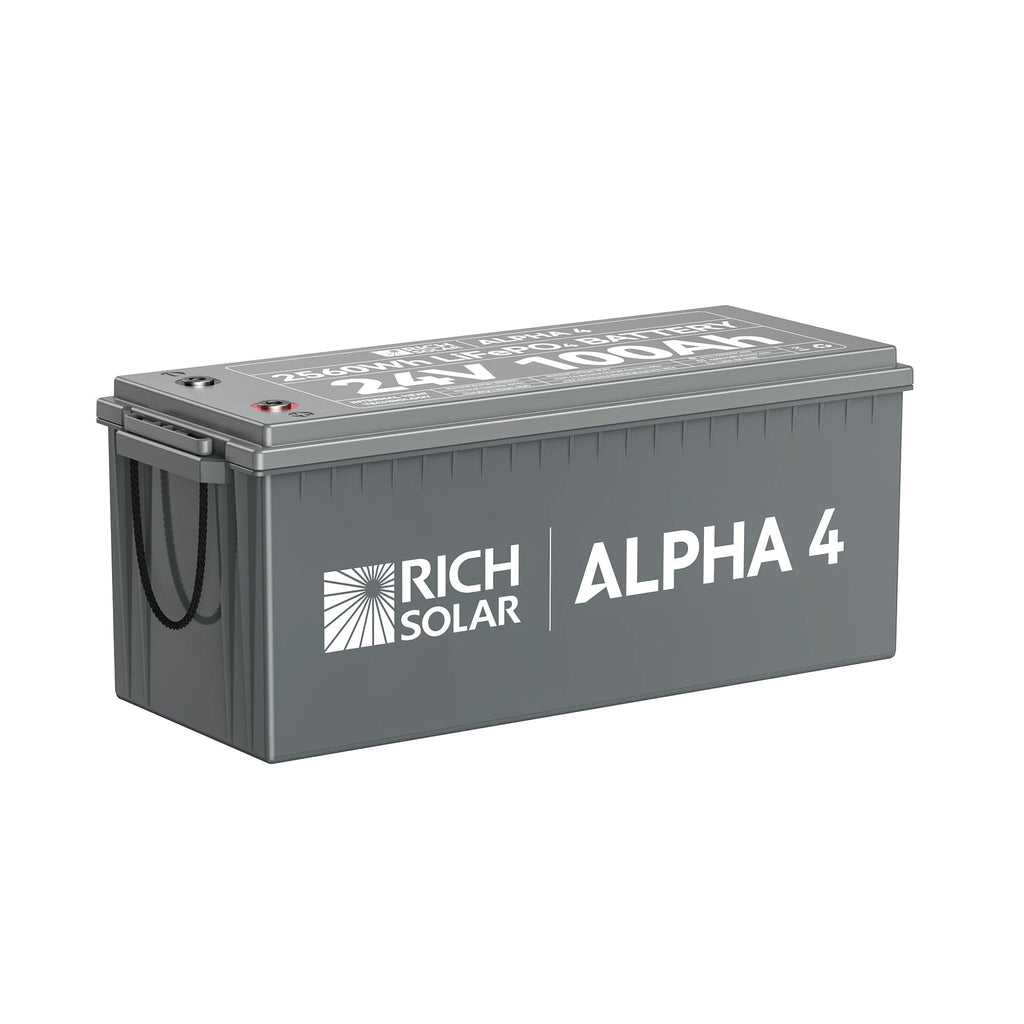

ALPHA 4 | 24V 100Ah LiFePO4 Battery Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology image 3

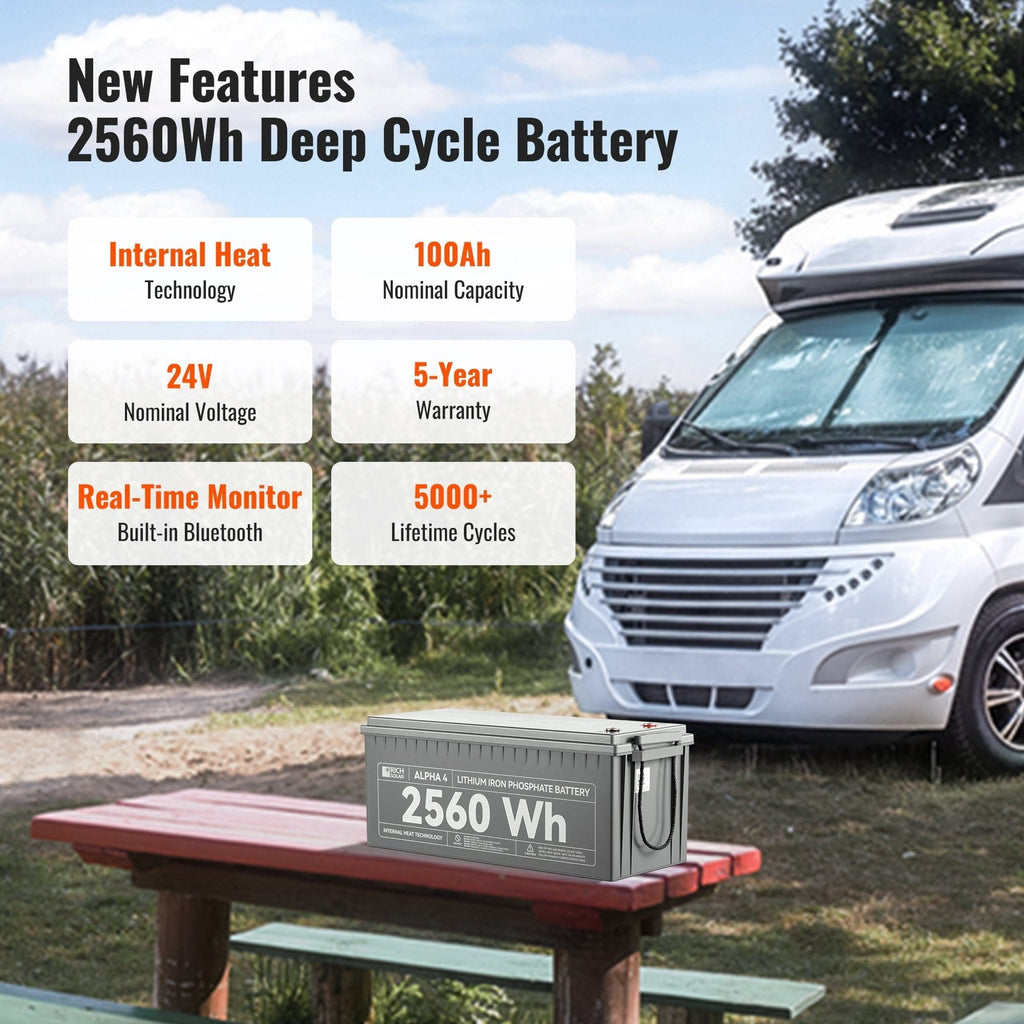

ALPHA 4 | 24V 100Ah LiFePO4 Battery Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology image 4

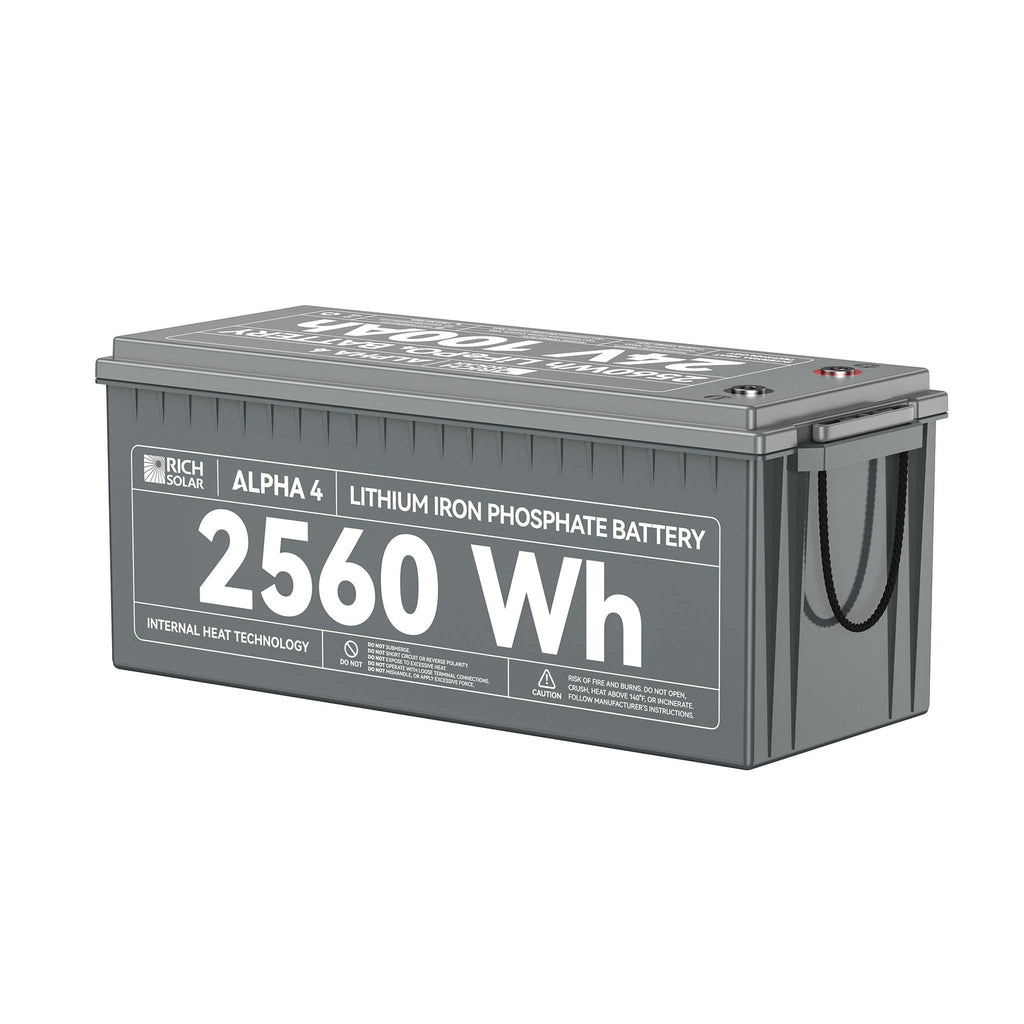

ALPHA 4 | 24V 100Ah LiFePO4 Battery Off-Grid | 5,000 Lifetime Cycles | Bluetooth and Internal Heat Technology image 5

Specifications

BATTERY
  • Cell Type: LiFePO4 Battery
  • Nominal Voltage: 25.6V
  • Nominal Capacity: 100Ah
  • Nominal Energy: 2560Wh
  • Cycle Life: 5000 cycles
  • Maximum Expansion (Parallel & Series): 4P4S

BMS

  • BMS: 100A
  • Maximum Charging Current: 100A
  • Maximum Continuous Discharge Current: 100A
  • Maximum Discharge Current 10 Seconds: 110A

CHARGE

  • Charge Method: CC/CV
  • Charge Voltage: 14.4V ± 0.2V
  • Recommend Charge Current: 50A (0.2C)

TEMPERATURE

  • Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
  • Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
  • Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)

SELF-HEATING

  • External Power Draw: 100W
  • Internal Heating Starts: < 41℉ (5℃)
  • Internal Heating Stops: > 50℉ (10℃)

OTHERS

  • Net Battery Weight: 48.5lb
  • Size(L*W*H): 20.9x8.1x8.5in
  • Housing Material: ABS (Flame Retardant Plastic)
  • Protection Class: IP65
  • Warranty: 5 Years
  • Certifications: UL1973, FCC, UN38.3, ETL
